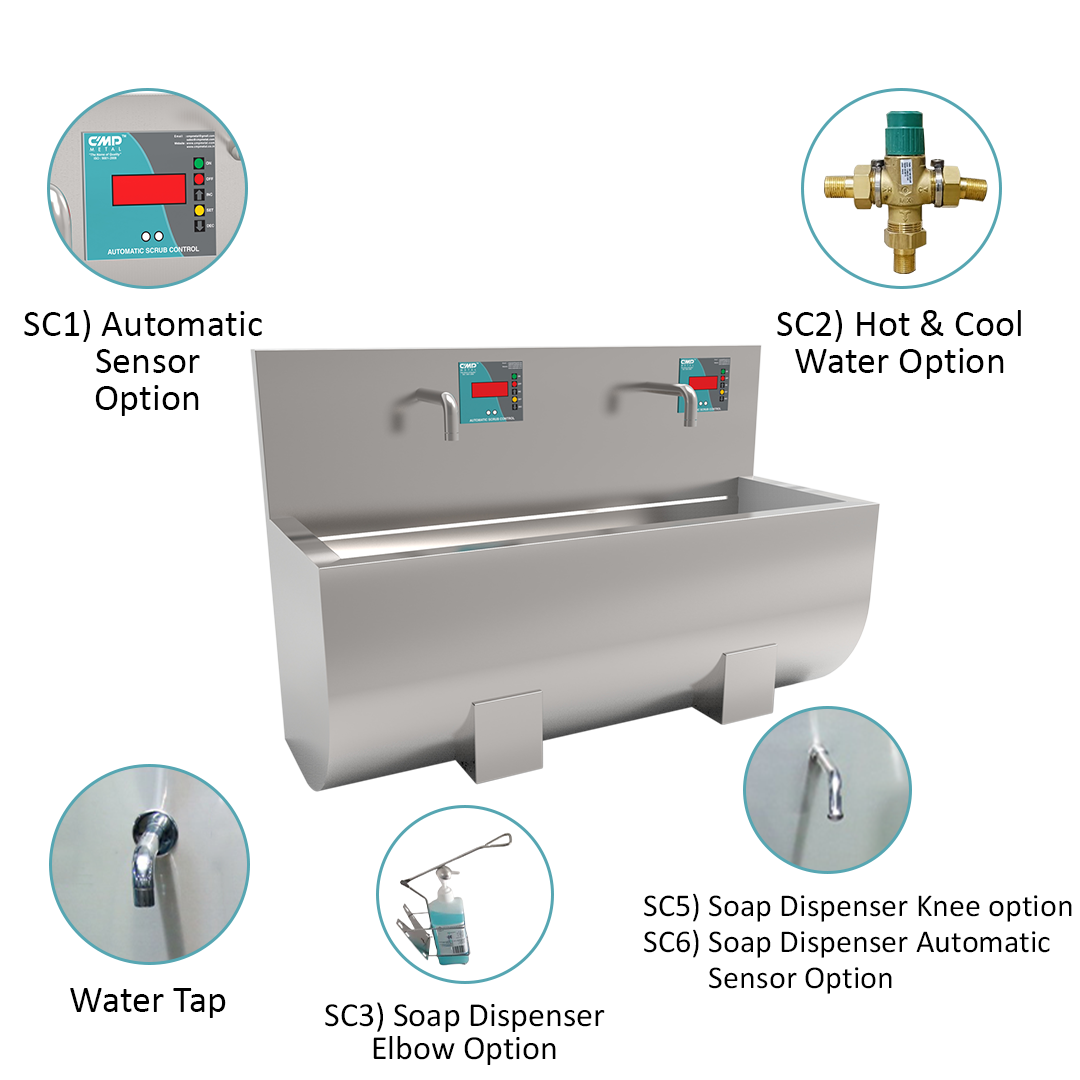

Wall Mounted Sink – 1000
Product Features
- Construction in type 304 stainless steel with matt finishing
- Sloppy curve in basin to eliminate back splash of water
- For water dispenser we have Digital sensor, Infrared sensor, Foot, Knee and Elbow operated arrangement option
- For soap dispenser we have Sensor, Knee and Elbow operated arrangement option
- Hot and Cool water arrangement is available
- Hot & Cool water arrangement as per requirement
- Easy to clean surface & installation at any place
- We do manufacture as per customer requirement

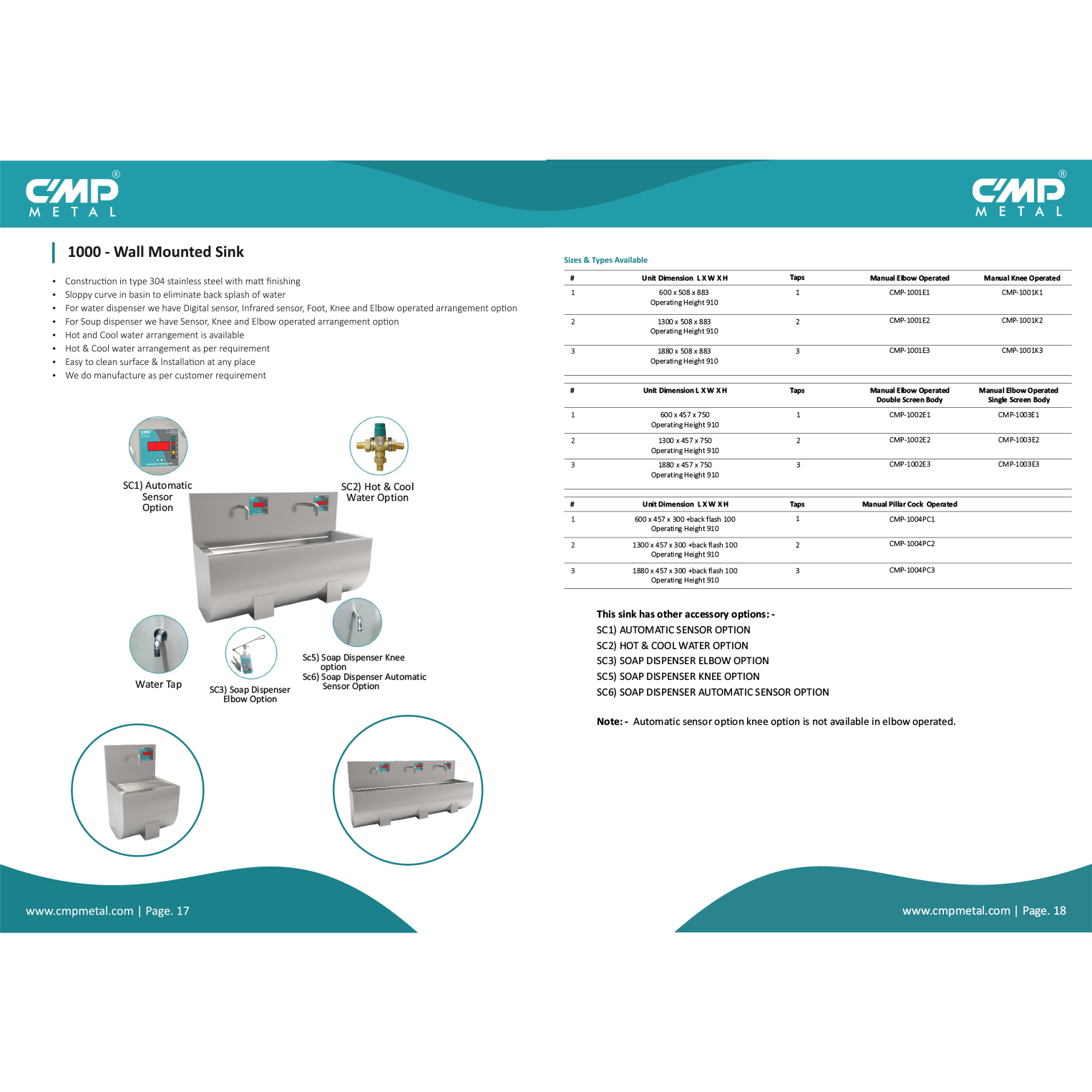

Product Drawing
International Quality Standard | Fastest Delivery
Export Standard Packaging | Customized Production|
After Sales Service & Full Support Available
International Quality Standard
Fastest Delivery
Export Standard Packaging
Customized Production After Sales Service & Full Support Available
Wall Mounted Scrub Sink is constructed in 1.2 thicknesses and in 304 grade stainless steel with horizontal and vertical corners coved to ¼” radius. Front corners are to be welded and all welds ground and polished to MAT finish. Sinks shall have sloping bas into eliminate back splash. Each station shall be equipped with 1.5” stainless steel drain. Outer enclosure is constructed of 18 gauge stainless steel.
Sizes & Types Available:
| Sr No | Unit Dimension L X W X H | Taps | MANUAL ELBOW OPERATED | MANUAL KNEE OPERATED |
|---|---|---|---|---|
| 1 | 600 x 508 x 883 Operating Height 910 | 1 | CMP-1001E1 | CMP-1001K1 |
| 2 | 1300 x 508 x 883 Operating Height 910 | 2 | CMP-1001E2 | CMP-1001K2 |
| 3 | 1880 x 508 x 883 Operating Height 910 | 3 | CMP-1001E3 | CMP-1001K3 |
| Sr No | Unit Dimension L X W X H | Taps | MANUAL ELBOW OPERATED DOUBLE SCREEN BODY | MANUAL ELBOW OPERATED SINGLE SCREEN BODY |
|---|---|---|---|---|
| 1 | 600 x 457 x 750 Operating Height 910 | 1 | CMP-1002E1 | CMP-1003E1 |
| 2 | 1300 x 457 x 750 Operating Height 910 | 2 | CMP-1002E2 | CMP-1003E2 |
| 3 | 1880 x 457 x 750 Operating Height 910 | 3 | CMP-1002E3 | CMP-1003E3 |
| Sr No | Unit Dimension L X W X H | Taps | MANUAL PILLAR COCK OPERATED |
|---|---|---|---|
| 1 | 600 x 457 x 300 +back flash 100 Operating Height 910 | 1 | CMP-1004PC1 |
| 2 | 1300 x 457 x 300 +back flash 100 Operating Height 910 | 2 | CMP-1004PC2 |
| 3 | 1880 x 457 x 300 +back flash 100 Operating Height 910 | 3 | CMP-1004PC3 |
Note:This sink has digital sensor & knee option for water dispenser.
